About ATOMSTACK :
100% laser engraving machine manufacturer located in China, welcome to visit our factory whenever you like! It is important to know that our factory do not just sell "boxes", but we offer support and advice to get the best results with the laser engraver you choose. We are always available to provide the spare parts you need with your laser engraving machine .You could reply on us for the consistent quality and service!
About Tax:
we do not including any tax and duty!
About customs charging fee . nobody can control , every country customs has different Import and export tariff system.
About Maintenance:
All machines have 13 months warranty against manufacturing defects,buy it with confidence. If any breakdown, send us the working video, we shall offer solutions for you. If the item was damaged during transportation or cannot be used normally, pls do not hesitate to contact us and provide us the photos and working video, we will give a partial refund or send the spare parts for free.
✅ Specifications:
Product Model: ATOMSTACK A24 ultra (A24 PRO WITH B3 Enclosure)
Engraving Size: 370*310mm
Engravable/Cuttable Materials:
◼Engraving Materials: Wood, Bamboo, Cardboard, Plastic, Leather, PCB Board, Anodized Aluminum, Non-reflective Electroplated and Painted Metals, 304 Mirror Stainless Steel, Glass, Ceramic, Cotton, Slate;
◼Cutting Materials: Cardboard, Non-woven Fabric, Wood, Plywood, Acrylic (transparent needs to be coated black), Some thin plastic sheets, Sponge, Aluminum, and Stainless Steel thin sheets;
Total Power: 120W
Laser Output Power: 24W
Laser Wavelength: 455±5nm
Engraving Accuracy: 0.02mm
Focus Method: Fixed-focus laser, no need for manual focusing

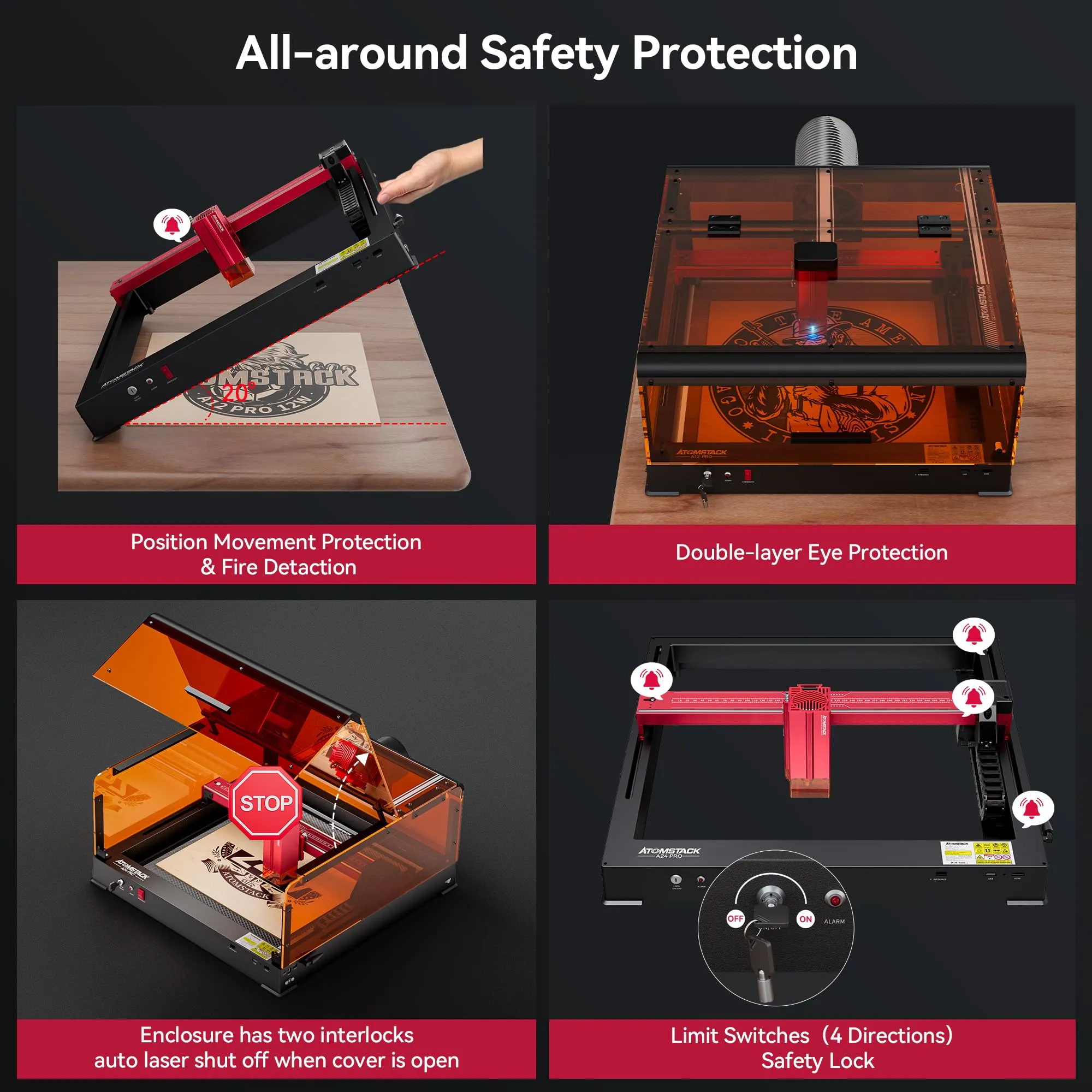

Laser Protective Cover: The laser has a protective cover to safeguard the user's eyes, eliminating the need for additional protective eyewear. It also prevents pets from reaching the laser spot.
Operating Software: LaserGRBL, LightBurn, compatible with Win XP / Win 7 / Win 8 / XP / Win 10 systems
Supported File Formats: NC, BMP, JPG, PNG, DXF
Data Transfer Method: USB connection
Power Supply: International standard power input: 100-240V AC, 50/60HZ Output: 24V 5A
Certifications: CE, FCC, RoHS, FDA, PSE
Product Description :
- 24 W high power and high speed: ATOMSTACK A24 Pro uses the most stable 24 W high-performance laser module. It features a fixed focus design for fast and precise focusing in 10 seconds. The maximum engraving speed of the ATOMSTACK A24 Pro is 600 mm/s, which is 3-6 times as fast as conventional frame machines.

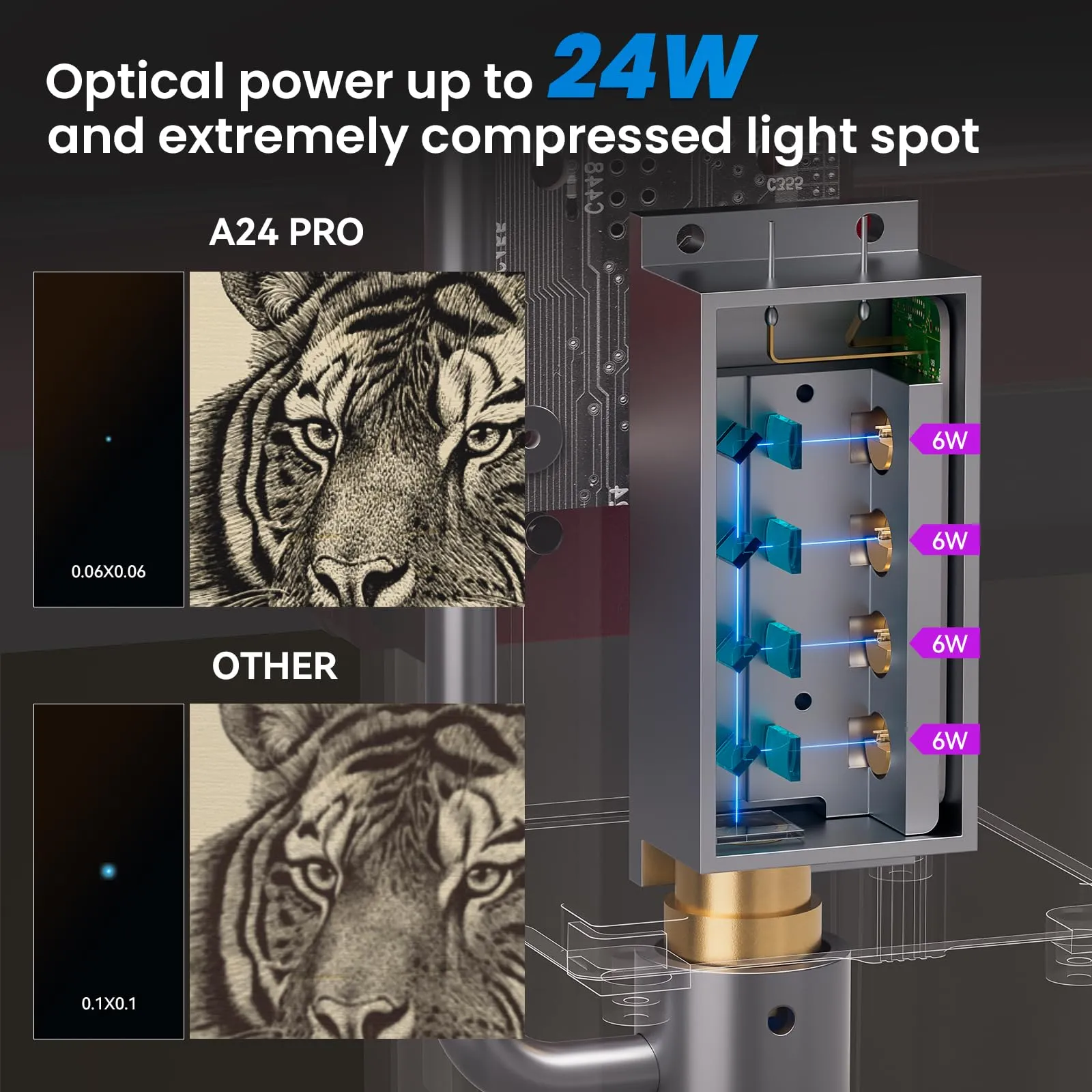

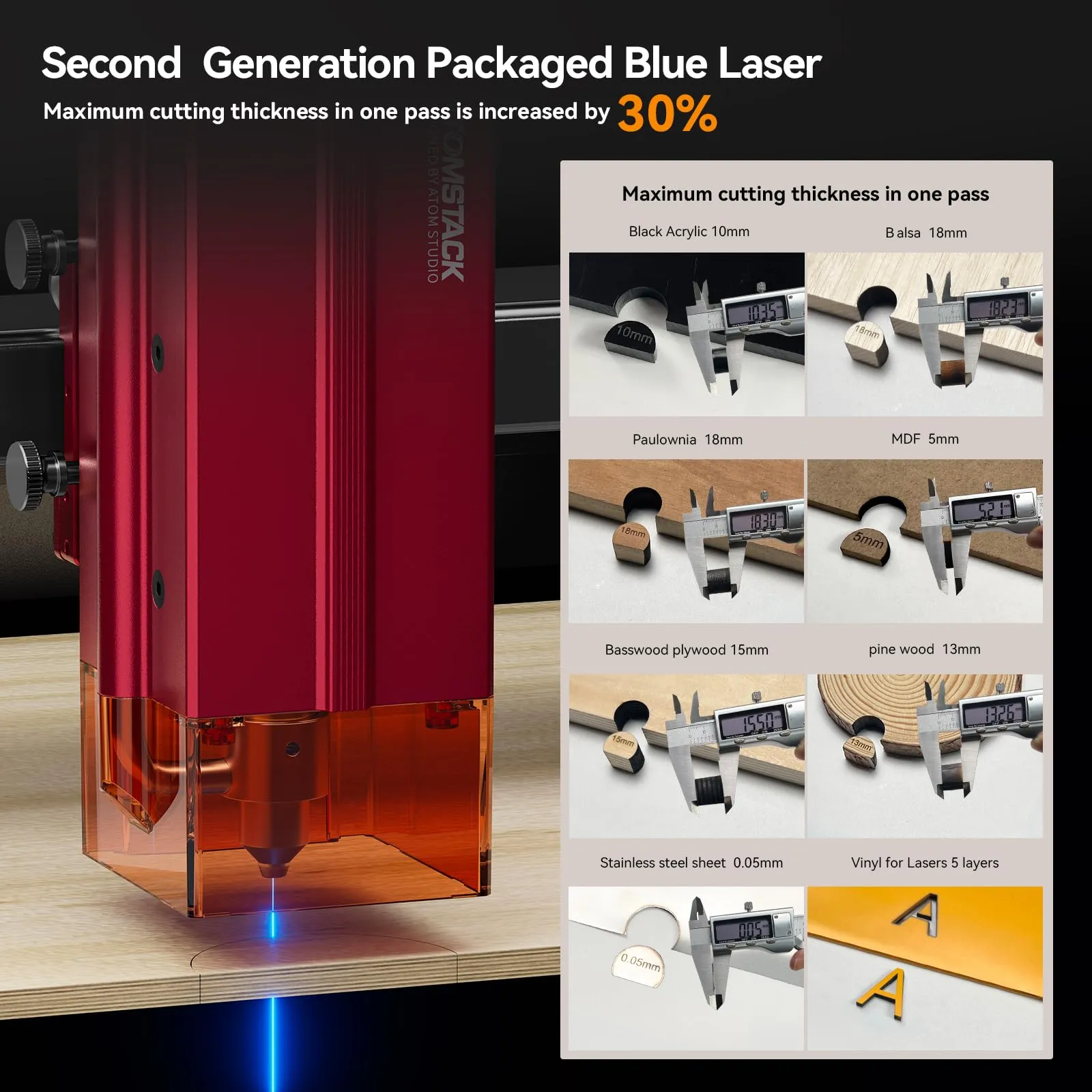

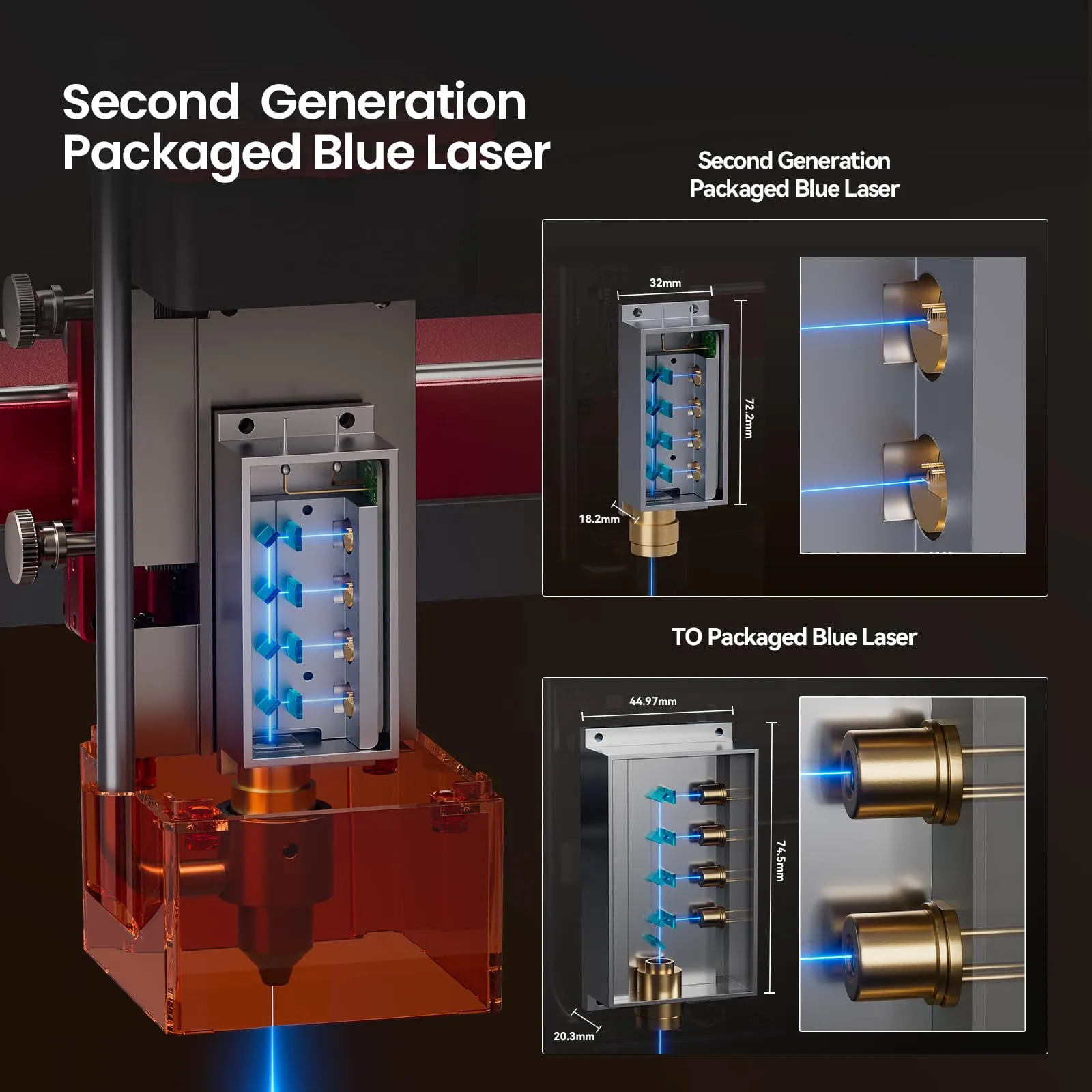

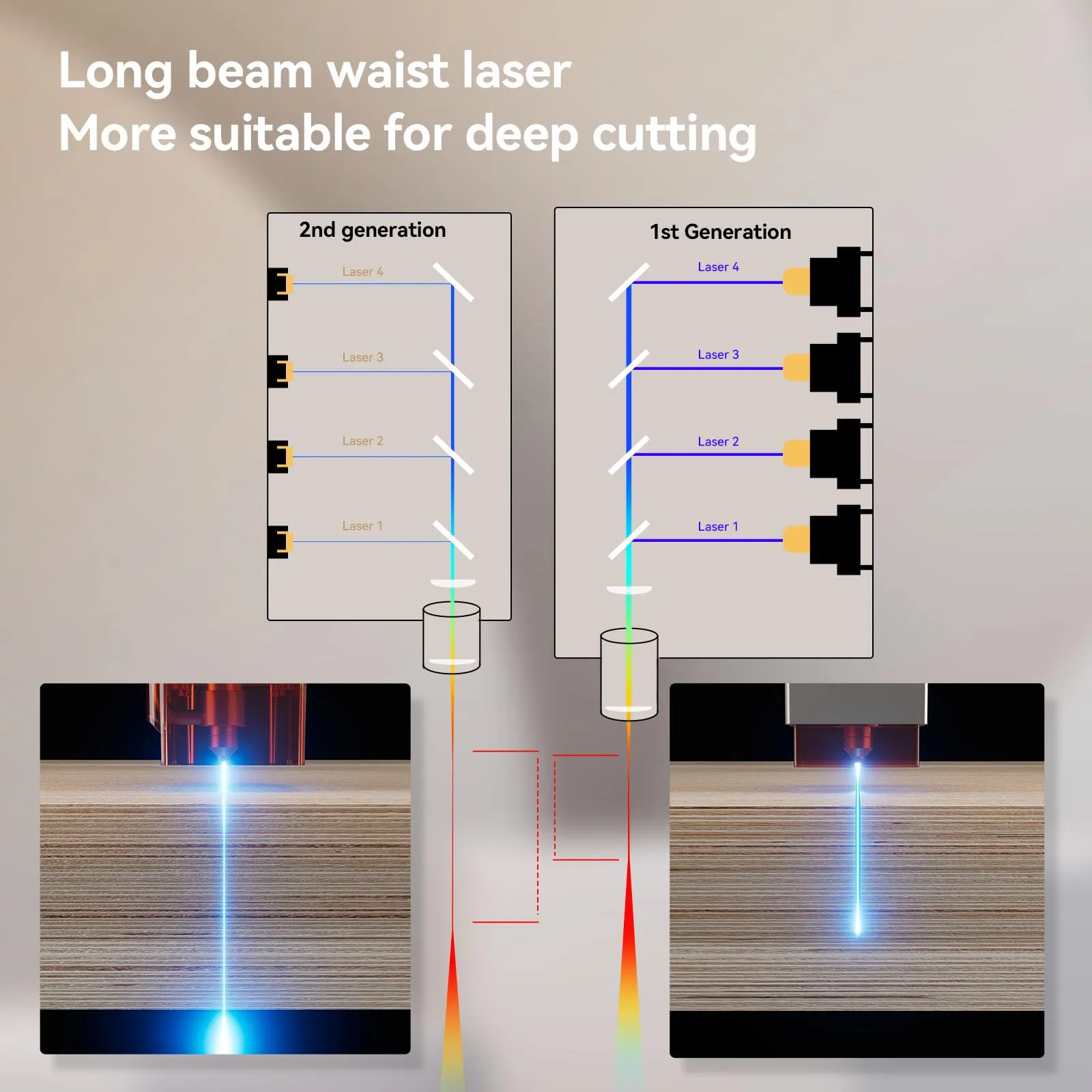

- Blue light laser beam compression technology: ATOMSTACK A24 Pro laser uses second generation laser beam compression technology to further compress the laser beam and significantly improve cutting ability. Compared to machines of the same category, the cutting ability is increased by 40%. The ultra-fine laser focus range has been reduced to 0.06 x 0.06 mm.
- Robust structure, plug and play: the frame of the ATOMSTACK A24 Pro is made of aluminium alloy. The lower frame of the A24 Pro is integrally formed, and the X axis uses a dual axis guide rail structure to ensure minimal work shaking and ensure that the machine does not vibrate when operating at a high speed of 36,000 mm/min.
- Tank chain design and non-clogging laser module: the A24 Pro uses a tank chain cable bundle solution to ensure smooth operation of the wiring harness without tangling. The new A24 laser comes with a tool-free focus module and an integrated air support system that eliminates cable interference for a sleek and minimalist design.

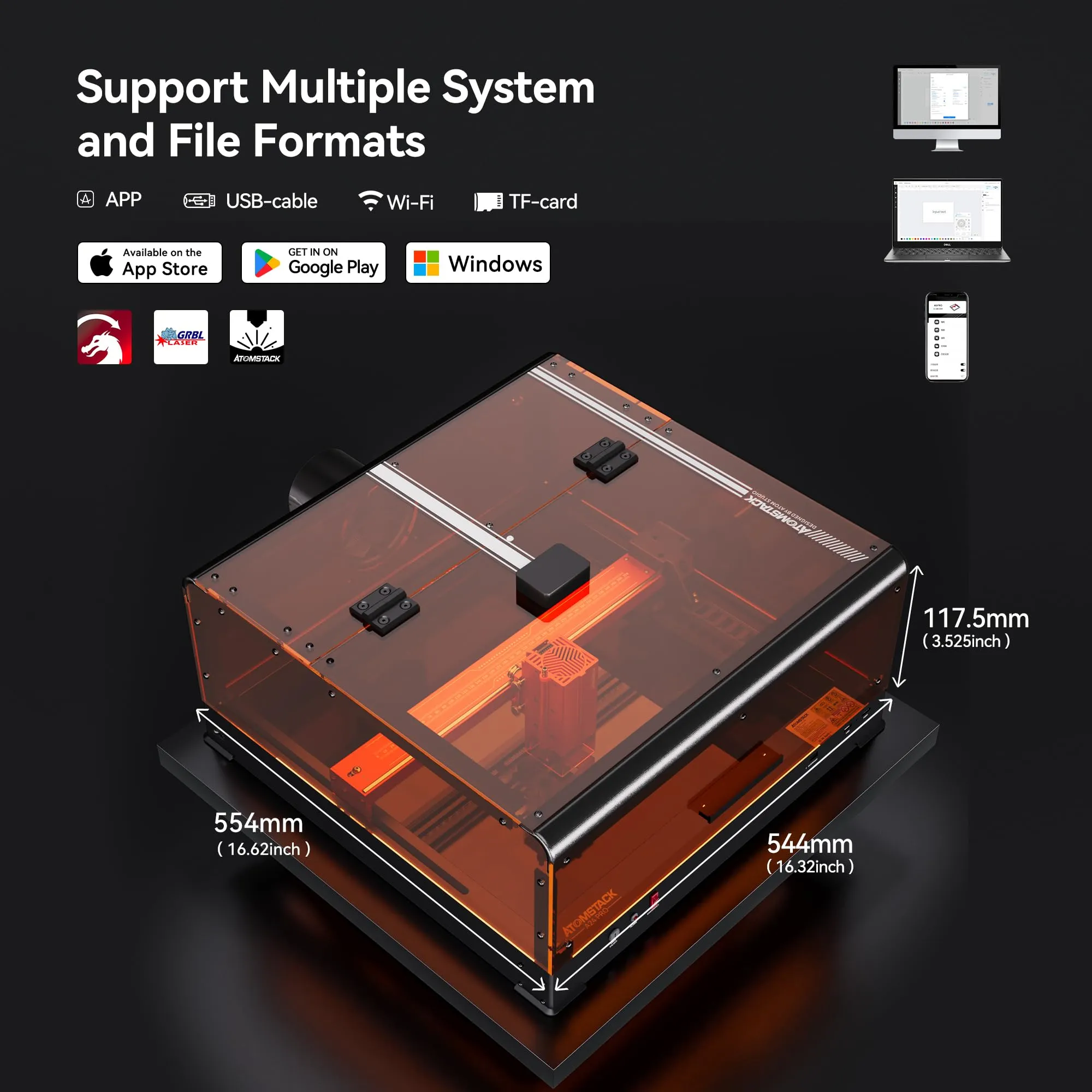

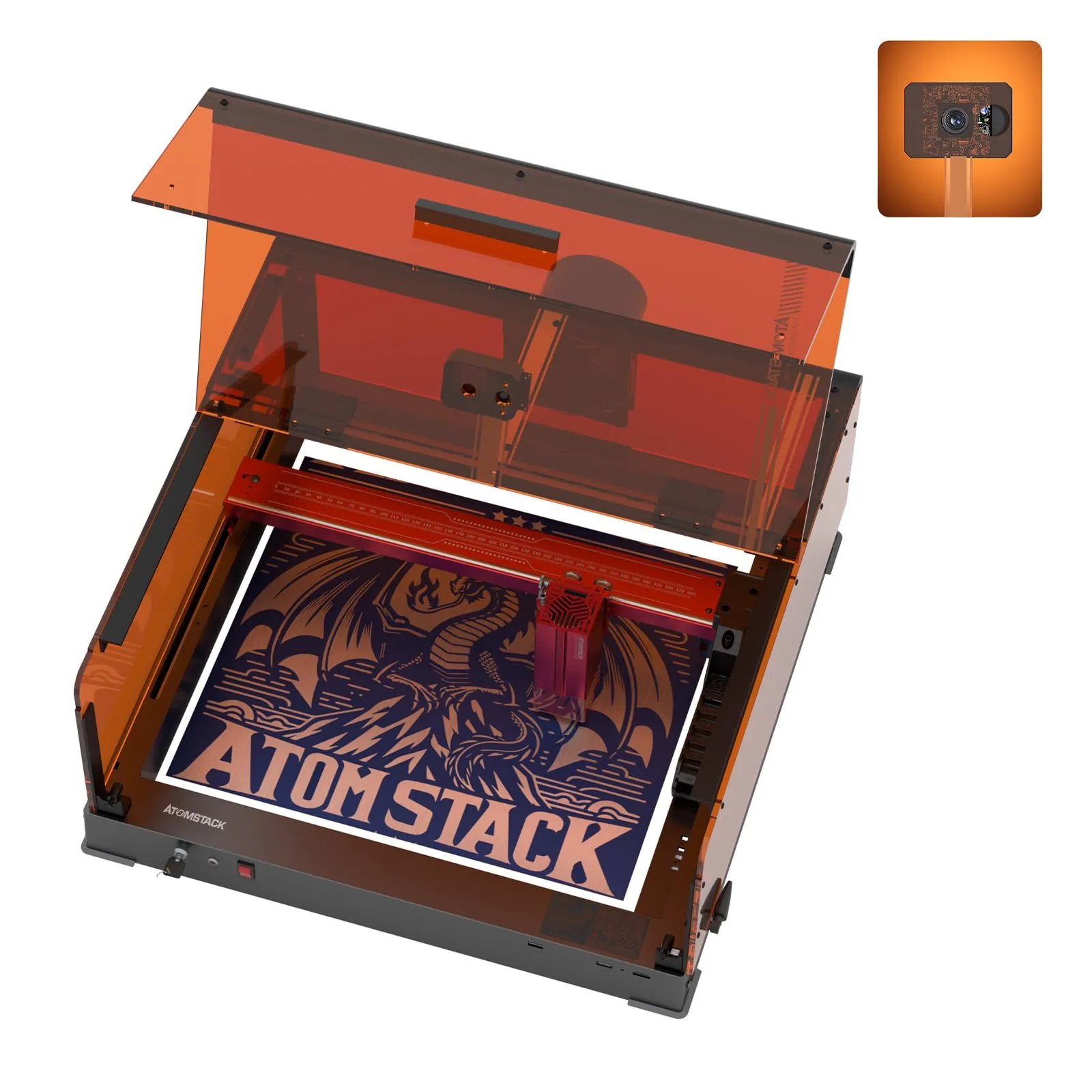

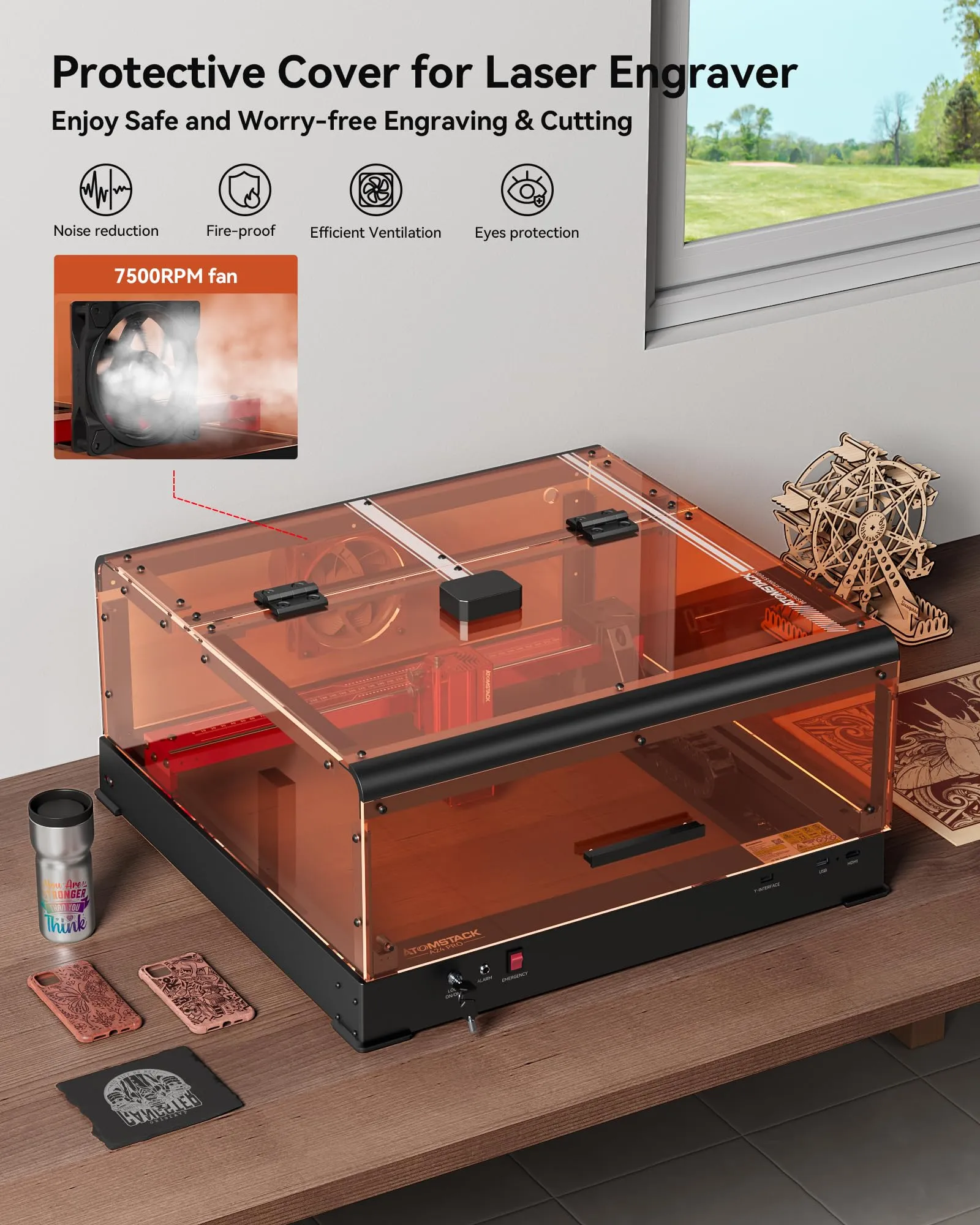

- Equipped with B3 laser housing: The entire body of the ATOMSTACK B3 is made of acrylic, allows you to observe the working status of the machine and protect it from strong light. The built-in camera and LED lighting at the top allow precise positioning and machine control.
